10G RJ Transceiver Module

10G RJ Transceiver Module

0.0/5 rating (0 votes)

Description

10G RJ Transceiver Module

Product Description
F-tone Networks’s FTRJ-xx1X-xxx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 10Gbps. The module is fully compliant with Small Form-Factor Transceiver.These transceiver modules provide the system designer with Telecom, Datacom, and other Fibre Channel applications.

Product Features
● VCSEL/DFB Laser Diode Transmitter
● Up to 0.3Km on 62.5/125μm MMF(300m links with OM3 MMF ,82m links with OM2 MMF , 33m links with OM1 MMF) ,Up to 20 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Inputs and Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard:0 to +70℃) or (Industrial: -40°C to +85°C)

Application
● High-speed Storage Area Networks
● 10G Ethernetand
● Other optic links

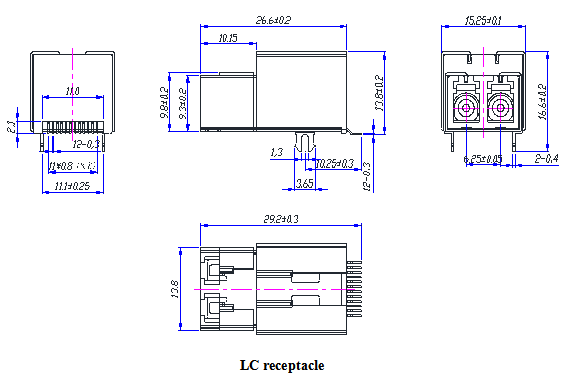

Module Outline Drawing

A5

Order Information

Type

Fiber Type

Wavelength(nm)

Fiber Length(Km)

FTRJ-851X-02

MM

850(VCSEL)

0.3

FTRJ-131X-10

SM

1310(DFB)

10

FTRJ-131X-20

SM

1310(DFB)

20

FTRJ-851X-02I

MM

850(VCSEL)

0.3

FTRJ-131X-10I

SM

1310(DFB)

10

FTRJ-131X-20I

SM

1310(DFB)

20

Note:
1. The suffix “M” denote MMF.
2.The suffix “-I” denote the industrial level.













本产品为FTRJ系列 ,仅展示部分参数 ,如有需要 ,请联系公海彩船。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
