OSFP 400Gbps

OSFP 400Gbps

随着移动互联网、云盘算、大数据等技术的飞速生长,整个通信行业也急需把网络从40G升级到100G再到400G 。OSFP和QSFP-DD已经成为400G解决计划的两个实际上的标准 。公海彩船推出400G 产品解决计划,应用于400G以太网、数据中心及下一代云网络 。

P/NProduct DescriptionData Rate (Gbit/s)ReachTXRXPower ConsumptionTemperature (deg C)
FT-OSFP-AOC-xxx 400G OSFP AOC 400G 30m VCSEL PIN <9W (for each end) 0-70/-40~85可选
FT-OSFP-SR8 400G OSFP SR8 400G 100m VCSEL PIN <9W 0-70/-40~85可选
FT-OSFP-2FR4 400G OSFP 2x FR4 400G 2km Uncooled EML PIN <10W 0-70/-40~85可选
FT-OSFP-LR8 400G OSFP LR8 400G 10km Cooled EML PIN <13W 0-70/-40~85可选
FT-OSFP-ER8 400G OSFP ER8 400G coming soon coming soon coming soon coming soon 0-70/-40~85可选
FT-OSFP-ZR8 400G OSFP ZR8 400G coming soon coming soon coming soon coming soon 0-70/-40~85可选
  • - 400G OSFP SR8
  • - 400G OSFP AOC
  • - 400G OSFP 2X FR4
  • - 400G OSFP LR8
  • - 400G QSFP-DD SR8
  • - 400G QSFP-DD SR4
  • - 400G QSFP-DD LR4
  • - 400G QSFP-DD AOC
  • - 400G QSFP-DD FR4
  • - 400G QSFP-DD DR4
  • -100G SFP-DD SR
  • - 100G SFP-DD LR

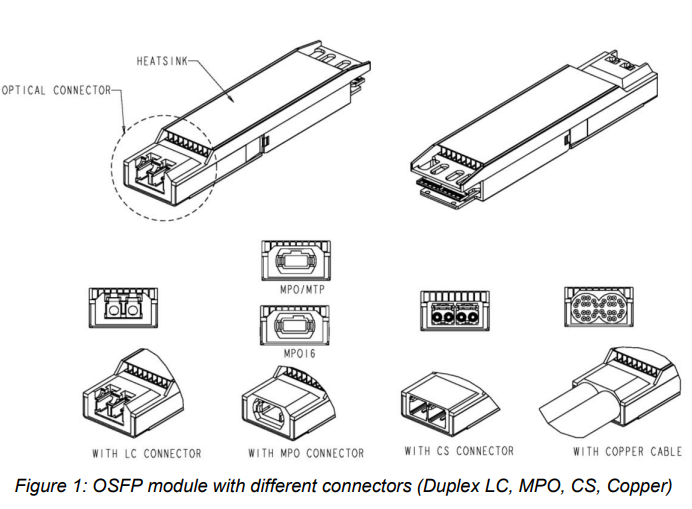

The OSFP is a new pluggable form factor with eight high speed electrical lanes that will initially support 400 Gbps (8x50G). It is slightly wider and deeper than the QSFP but it still supports 32 OSFP ports per 1U front panel, enabling 12.8 Tbps per 1U.

400G Optics require more power than 100G Optics and many of them will not fit into the existing QSFP form factor. Depending on the specific 400G optics technology the initial power projections range from 7.5 Watt to 15 Watt.

The OSFP has an integrated heat-sink that greatly improves thermal performance and enables modules with up to 15W power in a switch chassis with conventional airflow.

Since the OSFP is slightly wider and deeper than the QSFP, it is possible to build an adaptor that supports existing 100G QSFP optics modules in a OSFP cage.

The OSFP is able to meet the projected thermal requirements for 800 Gbps optics when those systems and optics become available in the future.

The OSFP MSA will define the OSFP specification, including the mechanical module, the card cage, the electrical interface, pinout, and management interface.

CDFP 400Gbps

100G QSFP光?

100G QSFP光 ?

100G QSFP光 ?

产品特点
● 切合QSFP28 MSA, IEEE 802.3bm 100GBASE-SR4/LR4/ER4,OTN OTU3/OTU4并行光学链路
● 可热插拨,具备数字诊断和控制能力
● 单电源3.3V供电

100G/400G OSFP

100G/400G OSFP

100G/400G OSFP

F-tone Networks Octal Small Form-factor Pluggable (OSFP) product family is designed based on dual polarization quadrature phase shift keying (DP-QPSK) or dual polarization quadrature amplitude modulation (DP-16QAM) or probabilistic constellation shaping quadrature amplitude modulation (PCS-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization.

200G QSFP光?

200G QSFP光 ?

200G QSFP光 ?

产品特点
● 切合QSFP-56封装并兼容MPO光接口
● 可热插拔,具备数字诊断和控制能力
● 满足EMI、ESD要求

400G 10km OSFP Optical Transceiver

400G 10km OSFP Optical Transceiver

400G 10km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber with FEC. The module has 8 independent electrical input/output channels operating at 53.125Gbps per channel.

400G 2km OSFP FR4 Optical Transceiver

400G 2km OSFP FR4 Optical Transceiver

400G 2km OSFP FR4 Optical Transceiver

Descriptions
FTOS-4H-FR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 2km. FTOS-4H-FR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes on CWDM wavelength grids each running at 106.25Gbps.

400G 2km OSFP Optical Transceiver

400G 2km OSFP Optical Transceiver

400G 2km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2Km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel.

400G Duplex LC 2km OSFP Optical Transceiver

400G Duplex LC 2km OSFP Optical Transceiver

400G Duplex LC 2km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2km single mode fiber with FEC. The module has 8 independent electrical input/output channels operating at 53.125Gbps per channel.

400G MPO12 10km OSFP Optical Transceiver

400G MPO12 10km OSFP Optical Transceiver

400G MPO12 10km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate 53.125Gbps per channel.

400G MPO12 2km OSFP Optical Transceiver

400G MPO12 2km OSFP Optical Transceiver

400G MPO12 2km OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 2km single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate of 53.125Gbps per channel.

400G MPO12 500m OSFP Optical Transceiver

400G MPO12 500m OSFP Optical Transceiver

400G MPO12 500m OSFP Optical Transceiver

Product Description
F-tone Networks’s OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels at host side with data rate 53.125Gbps per channel.

400G OSFP DR4

400G OSFP DR4

400G OSFP DR4

400G OSFP DR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the OSFP MSA, IEEE 802.3bs and 100G Lambda MSA.The optical transceiver is RoHS compliant.

400G OSFP-RHS SR4 VCSEL 850nm 100m光收发?

400G OSFP-RHS SR4 VCSEL 850nm 100m光收发 ?

400G OSFP-RHS SR4 VCSEL 850nm 100m光收发 ?

产品描述
公海彩船的400G OSFP-RHS SR4是一款可热插拔的光收发 ?,设计应用于数据中心400G以太网链路,接纳100G PAM4和VCSEL技术,在系统开启FEC的前提下,可以通过4对多模光纤实现100m以内的425Gbps数据互连 。

400G OSFP-RHS VR4 VCSEL 850nm 50m光收发?

400G OSFP-RHS VR4 VCSEL 850nm 50m光收发 ?

400G OSFP-RHS VR4 VCSEL 850nm 50m光收发 ?

产品描述
公海彩船的400G OSFP-RHS VR4是一款可热插拔的光收发 ?,设计应用于数据中心400G以太网链路,接纳100G PAM4和VCSEL技术,在系统开启FEC的前提下,可以通过4对多模光纤实现50m以内的425Gbps数据互连 。

400G OSFP光?

400G OSFP光 ?

400G OSFP光 ?

公海彩船拥有全面的400G OSFP光通信 ?椴纷楹,包括4x50Gx2和4X100G两种架构计划 。该系列的产品切合IEEE 802.3bs 和OSFP MSA标准,主要应用于400G以太网、数据中心和云网络 。

400G QSFP光?

400G QSFP光 ?

400G QSFP光 ?

产品特点
● 切合QSFP-DD封装并兼容MPO/LC光接口
● 可热插拔,具备数字诊断和控制能力
● 满足EMI、ESD要求
