CSFP+10G光 ?

CSFP+10G光?

CSFP(紧凑型SFP)系列产品 ,包括1G ,2.5G ,10G速率和CWDM DWDM激光器解决计划 ,距离10公里到80公里 。该系列产品应用在一个标准SFP/SFP+时隙2个BiDi的CSFP所支持交换机和路由器

SFF-8472 CSFP
1000Base-LX
1000Base-CWDM
1000Base-DWDM
10GBase-LR
10GBase-CWDM
10GBase-DWDM

Package Form Part No. Fiber Type Data Rate Range Wavelength Reach Port Case Temperature range DownLoad
CSFP+ CSFP-10GDW40-xx SMF 10G DWDM 40km Dual BiDi COM. IND.
CSFP+ CSFP-10GDW80-xx SMF 10G DWDM 80km Dual BiDi COM. IND.
CSFP+ CSFP-10GCW10-xx SMF 10G CWDM 10km Dual BiDi COM. IND.
CSFP+ CSFP-10G-RX SMF 10G N/A 10~40km Dual Rx COM. IND.
CSFP+ CSFP-10G-TX SMF 10G 1310nm N/A Dual Tx COM. IND.
CSFP+ CSFP-10G-TX-DW SMF 10G DWDM N/A Dual Tx COM. IND.
CSFP CSFP-GEBDCWxxD SMF 1G CWDM xxkm Dual BiDi COM. IND.
CSFP CSFP-GEBDDWxxD SMF 1G DWDM xxkm Dual BiDi COM. IND.
CSFP CSFP-GEBD131420D SMF 1G Tx1310/Rx1490nm 20km Dual BiDi COM. IND.
CSFP CSFP-GEBD131520D SMF 1G Tx1310/Rx1550nm 20km Dual BiDi COM. IND.
CSFP CSFP-GEBD131440D SMF 1G Tx1310/Rx1490nm 40km Dual BiDi COM. IND.
CSFP CSFP-GEBD131540D SMF 1G Tx1310/Rx1550nm 40km Dual BiDi COM. IND.
CSFP CSFP-GEBD141320D SMF 1G Tx1490/Rx1310nm 20km Dual BiDi COM. IND.
CSFP CSFP-GEBD151320D SMF 1G Tx1550/Rx1310nm 20km Dual BiDi COM. IND.
CSFP CSFP-GEBD141340D SMF 1G Tx1490/Rx1310nm 40km Dual BiDi COM. IND.
CSFP CSFP-GEBD151340D SMF 1G Tx1490/Rx1310nm 40km Dual BiDi COM. IND.
CSFP CSFP-GEBD141580D SMF 1G Tx1490/Rx1550nm 80km Dual BiDi COM. IND.
CSFP CSFP-GEBD151480D SMF 1G Tx1550/Rx1490nm 80km Dual BiDi COM. IND.
CSFP CSFP-25BDCWxxD SMF 2.5G CWDM xxkm Dual BiDi COM. IND.
CSFP CSFP-25BDDWxxD SMF 2.5G DWDM xxkm Dual BiDi COM. IND.

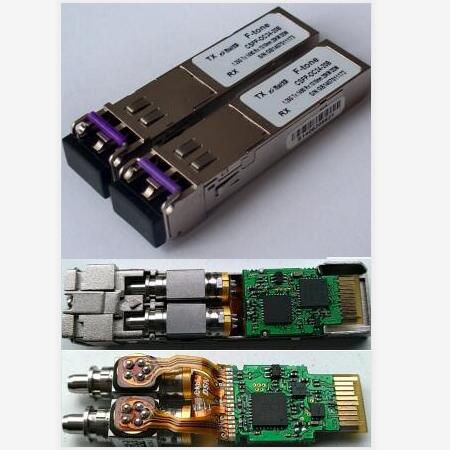

10G CSFP BIDI Transceiver

10G CSFP BIDI 光 ?

ü Two Bi-Directional transceivers in one SFP package

ü Up to 10.3125Gb/s data links

ü Duplex LC connector

ü Hot-pluggable SFP footprint

ü Uncooled DFB laser transmitter

ü RoHS compliant and Lead Free

ü Up to 10Km on 9/125um SMF

ü Metal enclosure for lower EMI

ü Single +3.3V power supply

ü Compliant with CSFP MSA 2.0 (Option 2)

ü Commercial operating temperature optional
