1310nm-10Gbps双纤双向超短型光收发一体?
描述
FTRS-131X-xx型光收发?橹饕τ糜诠獗嘲宕洹⒏呖煽啃愿呤萋实愣缘愎庀送ㄐ拧⑹掷状镎罅械戎种质止馔ㄐ帕煊,具有体积小、抗振动、抗电磁滋扰、耐湿热等特点。?橥庑问褂萌鹗艚峁,将发送和接收部分封装在一个小尺寸金属壳体内,接纳12Pin排针电接口,发射波长为1310nm,发射通道和接收通道事情速率可到10.3125Gbps,光接口为可插拔的标准LC连接器接口,事情温度为-40~85℃。
特性描述
● 支持 10.3125G/s双向连接
● 适应于高速信号完整性的表贴I/O引脚
● 金属封装,具有较低的EMI
● 军品级温度规模,接纳抗振动设计
● 内建数字诊断功效
● 3.3 V单电源供电
● 功耗小于1W
应用
● 10GBASE-LR
● 高可靠性高数据率点对点光纤通信
● 数字雷达阵列
● 光背板传输

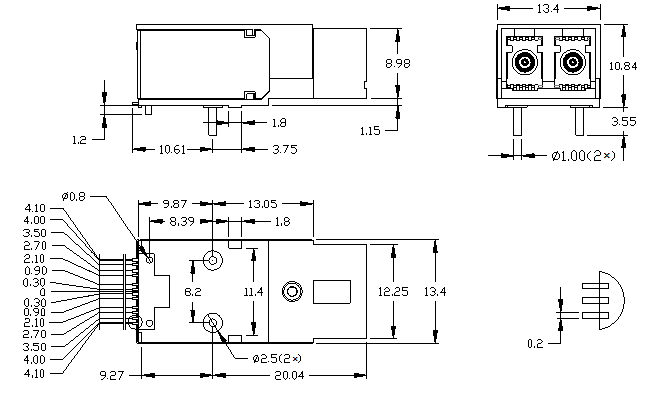

LC接头外形尺寸

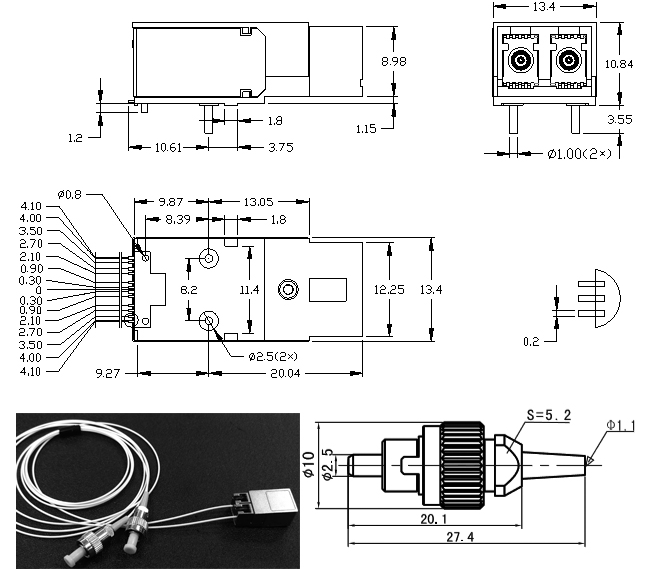

尾纤式-FC接头外形尺寸
订购信息/Ordering information
Part Number |
Product Description |
FTRS-131X-02 |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-2km-商业级 |
FTRS-131X-02I |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-2km-工业级 |
FTRS-131X-02M |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-2km-军品级 |
|
|
FTRS-131X-10 |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-10km-商业级 |
FTRS-131X-10I |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-10km-工业级 |
FTRS-131X-10M |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-10km-军品级 |
|
|
FTRS-131X-20 |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-20km-商业级 |
FTRS-131X-20I |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-20km-工业级 |
FTRS-131X-20M |
FTRS双纤双向超短型封装-LC接头- 1310nm-10Gbps-20km-军品级 |
|
|
FTRP-131X-02F |
FTRS双纤双向超短型封装尾纤式-FC接头- 1310nm-10Gbps-2km-商业级 |
FTRP-131X-02FI |
FTRS双纤双向超短型封装尾纤式FC接头- 1310nm-10Gbps-2km-工业级 |
FTRP-131X-02FM |
FTRS双纤双向超短型封装-尾纤式FC接头- 1310nm-10Gbps-2km-军品级 |
|
|
FTRP-131X-10F |
FTRS双纤双向超短型封装尾纤式-FC接头- 1310nm-10Gbps-10km-商业级 |
FTRP-131X-10FI |
FTRS双纤双向超短型封装尾纤式FC接头- 1310nm-10Gbps-10km-工业级 |
FTRP-131X-10FM |
FTRS双纤双向超短型封装-尾纤式FC接头- 1310nm-10Gbps-10km-军品级 |
|
|
FTRP-131X-20F |
FTRS双纤双向超短型封装尾纤式-FC接头- 1310nm-10Gbps-20km-商业级 |
FTRP-131X-20FI |
FTRS双纤双向超短型封装尾纤式FC接头- 1310nm-10Gbps-20km-工业级 |
FTRP-131X-20FM |
FTRS双纤双向超短型封装-尾纤式FC接头- 1310nm-10Gbps-20km-军品级 |
注: CWDM波长可供选择
本产品为FTRP系列,仅展示部分参数,如有需要,请联系公海彩船。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
