Mini MEMS 光衰减器(反射式)
简介
基于微机电系统(MEMS)的动态可调光衰减器(Dynamic Variable Optical Attenuator——简称 DVOA)是实现全光网中功率调理的重要元件。 DVOA 能够实现对全光网的全面远程控制。主要应用在:预置光功率均衡、 信道传输均衡、光自动 增益调理、光接收器的掩护等。我公司研发的 DVOA 产品,接纳了 MEMS 控制芯片及奇特的光学设计,使产品越发小型化,成 本更低,并且反应越发迅速,具有更高的稳定性和可靠性,易于制造?煽啃允且勒 Telcordia GR1073 的可靠性检验标准, 现已经通过Telcordia GR1073 检验。
产品特性
● 高可靠性
● 高稳定性
● 低插入损耗
● 反应迅速
● 体积小
用途
● 传输光功率高
● 光路功率平衡;
● 信道传输均衡;
● 光自动增益调理
● 光接收机的掩护
● 光路通断

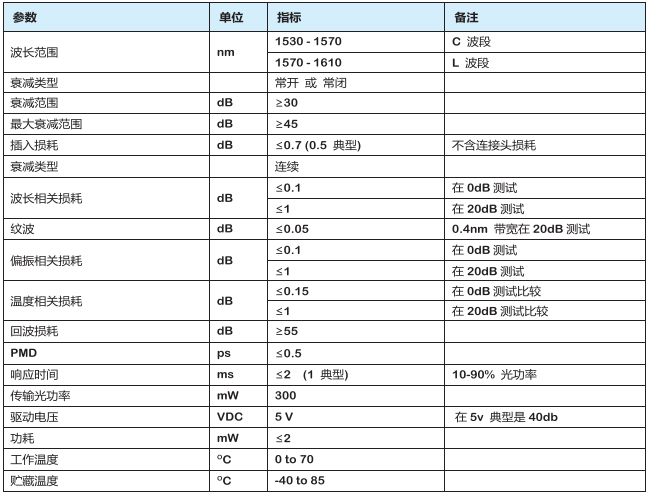

性能指标:

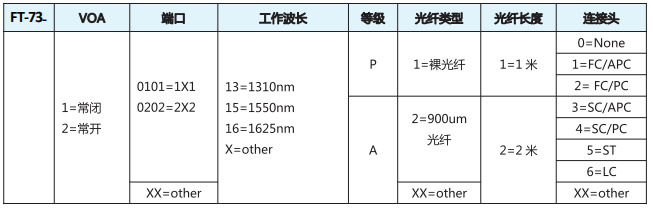

订货信息:

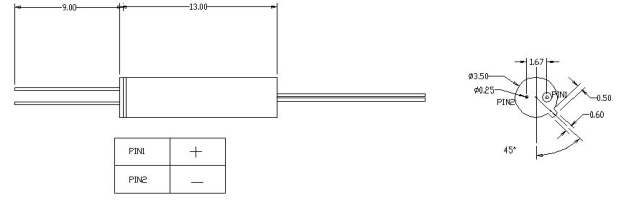

封装尺寸及管脚界说:

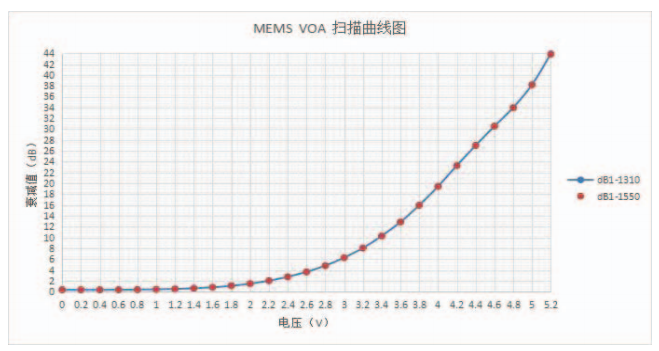

线性度:
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
