JYS系列 微型2芯光缆组件
型号:JYSK22N02-2ST-3/0.3m-S3-K、JYSK22N02-2ST-15/0.3m-S3-K
1、产品外形及尺寸及详细要求
1.1 JYSK22N02-JYSK22N02-5m (3.0 2芯单模铠装光缆)

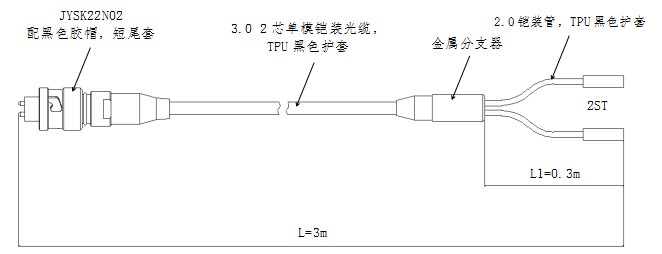

1.1、JYSK22N02-2ST-3/0.3m(3.0 2芯单模铠装光缆)
1.1.型号说明:产品一端为1个JYSK22N02插头,另一端为2个ST接头,主缆为3.0 2芯单模铠装光缆,TPU玄色护套,长度3m,分支光缆为2.0铠装管,TPU玄色护套,长度0.3m(包括总长之内)
链路损耗:≦0.6+0.6+0.4dB/km*Lm(1310nm)

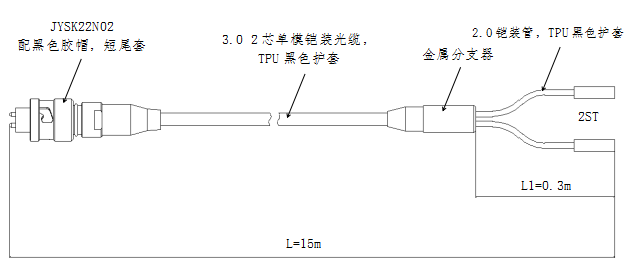

1.2、JYSK22N02-2ST-15/0.3m(3.0 2芯单模铠装光缆)
1.2.型号说明:产品一端为1个JYSK22N02插头,另一端为2个ST接头,主缆为3.0 2芯单模铠装光缆,TPU玄色护套,长度15m,分支光缆为2.0铠装管,TPU玄色护套,长度0.3m(包括总长之内)。
链路损耗:≦0.6+0.3+0.4dB/km*Lm(1310nm)

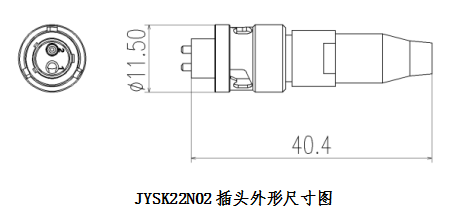

2、插头插座外形尺寸图
3、光缆组件参数
性能参数 |
指标要求 |
插拔次数 |
≥500次 |
材质 |
不锈钢 |
防护品级 |
/ |
盐雾性能 |
≧48H |
事情温度 |
-40℃~+85℃ |
连接器损耗 |
≦0.6 |
光缆组件坚持力(主缆) |
100N |
4、光缆参数

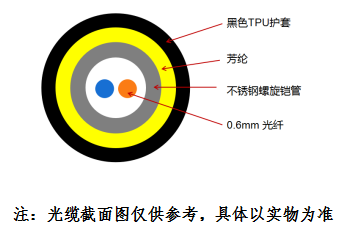

4.1 光缆截面图
4.2 光缆特性
光缆外径 |
3.0±0.2mm |
最小弯曲半径 |
|||
光纤模式 |
单模 |
静态 |
10D |
动态 |
20D |
光纤衰减(成缆后) |
光缆抗拉力 |
||||
|
|
恒久 |
500N |
短期 |
800N |
事情温度 |
压扁力 |
||||
-40 °C to +85 °C |
恒久 |
2000N/10cm |
短期 |
3000N/10cm |
5、包装规范
1、产品独立包装袋包装,每袋1条,标签贴在PE袋左上角
2、随货附发货清单
3、ZLTC标准包装或中性包装
注:本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
